BT不銹鋼熱縮刀柄-超細型
產品特點
高動平衡性，動平衡等級G2.5@25000rpm或U<1gmm
特殊不銹鋼材質，裝刀5000次精度不丟失
L<120組合跳動精度≤0.003mm；L=120，組合跳動精度≤0.004mm
產品詳情
·產品規格：
| 型號 | 夾持徑d | D | D1 | L | M | 最小裝刀深度E | t |
| BT30-SHR4S-95-M42 | 4 | 7 | 25 | 95 | 42 | 12 | 1.5 |
| BT30-SHR4S-120-M67 | 4 | 7 | 25 | 120 | 67 | 12 | 1.5 |
| BT30-SHR6S-95-M42 | 6 | 9 | 25 | 95 | 42 | 18 | 1.5 |
| BT30-SHR6S-120-M67 | 6 | 9 | 25 | 120 | 67 | 18 | 1.5 |
| BT40-SHR4S-95-M42 | 4 | 7 | 25 | 95 | 42 | 12 | 1.5 |
| BT40-SHR4S-120-M67 | 4 | 7 | 25 | 120 | 67 | 12 | 1.5 |
| BT40-SHR4S-150-M97 | 4 | 7 | 25 | 150 | 97 | 12 | 1.5 |
| BT40-SHR4S-180-M97 | 4 | 7 | 25 | 180 | 97 | 12 | 1.5 |
| BT40-SHR6S-95-M42 | 6 | 9 | 25 | 95 | 42 | 18 | 1.5 |
| BT40-SHR6S-120-M67 | 6 | 9 | 25 | 120 | 67 | 18 | 1.5 |
| BT40-SHR6S-150-M97 | 6 | 9 | 36 | 150 | 97 | 18 | 1.5 |
| BT40-SHR6S-180-M97 | 6 | 9 | 36 | 180 | 97 | 18 | 1.5 |
| BT40-SHR8S-95-M42 | 8 | 11 | 25 | 95 | 42 | 24 | 1.5 |
| BT40-SHR8S-120-M67 | 8 | 11 | 25 | 120 | 67 | 24 | 1.5 |
| BT40-SHR8S-150-M97 | 8 | 11 | 36 | 150 | 97 | 24 | 1.5 |
| BT40-SHR8S-180-M97 | 8 | 11 | 36 | 180 | 97 | 24 | 1.5 |
| BT40-SHR10S-95-M42 | 10 | 13 | 25 | 95 | 42 | 30 | 1.5 |
| BT40-SHR10S-120-M67 | 10 | 13 | 36 | 120 | 67 | 30 | 1.5 |
| BT40-SHR10S-150-M97 | 10 | 13 | 36 | 150 | 97 | 30 | 1.5 |
| BT40-SHR10S-180-M97 | 10 | 13 | 36 | 180 | 97 | 30 | 1.5 |

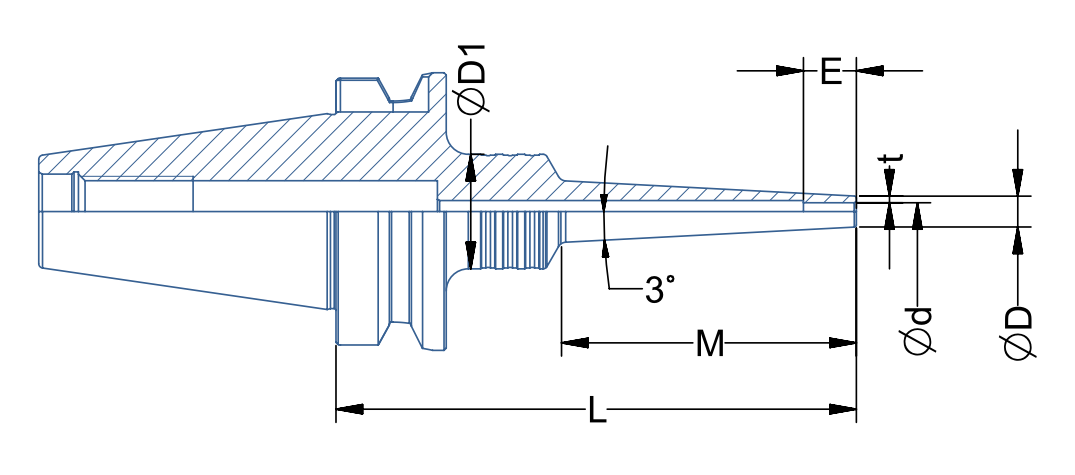

· 產品尺寸圖（單位mm）:
